Description
62% Energy Return – True elasticity and fast rebound, outperforming standard TPU.
Soft & Resilient (85A) – Flexible, impact-absorbing, and deformation-resistant.
Lightweight Performance – ~12% lighter than common TPU for sports, drones, robotics.
All-Weather Durability – Remains flexible and strong even at -30°C.
Chemical-Resistant – Withstands oils, greases, and industrial solvents.

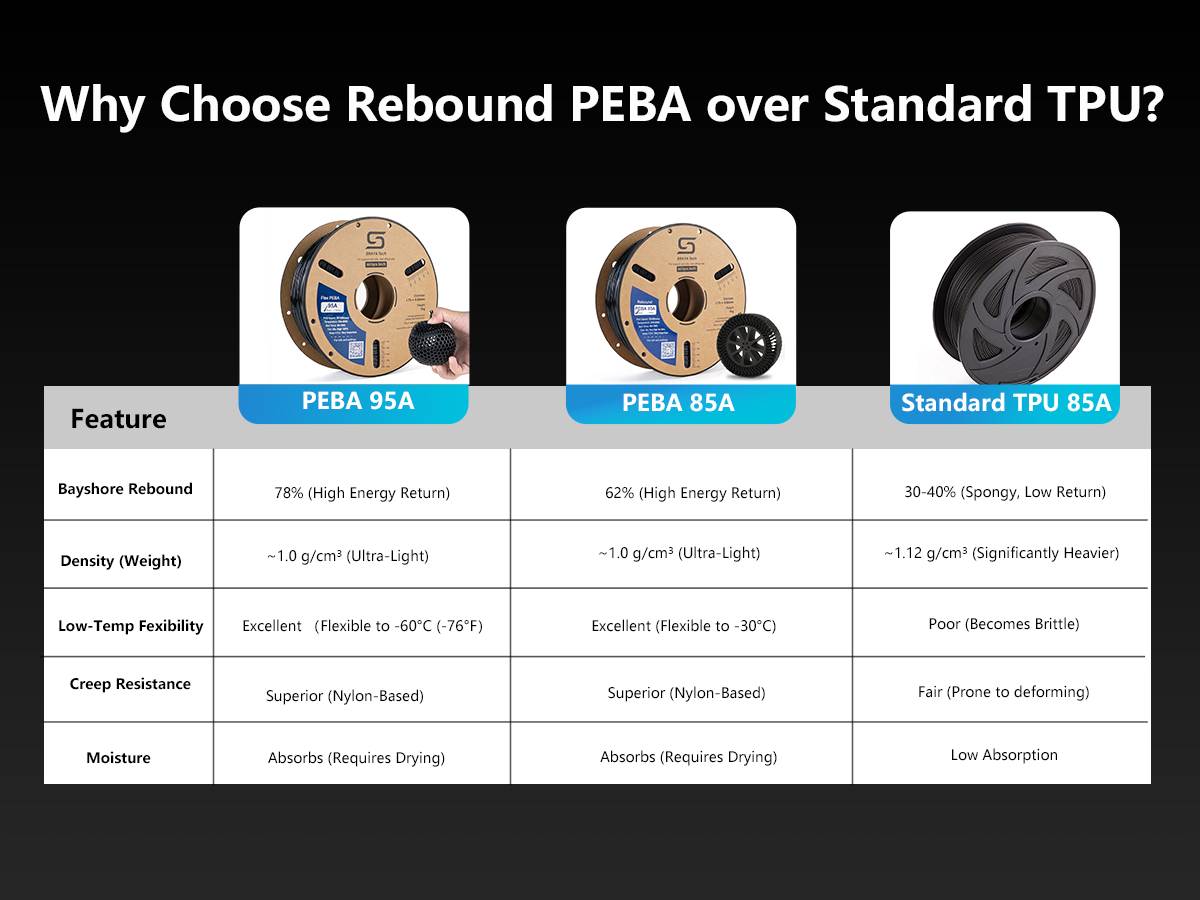

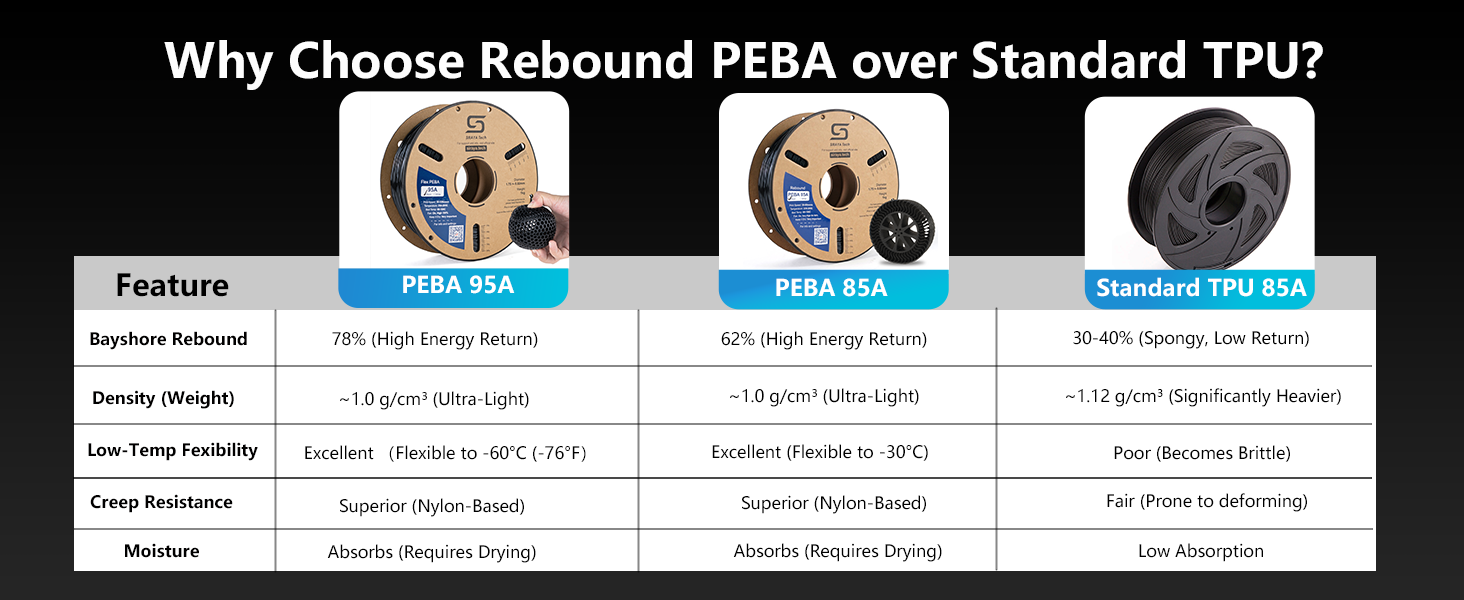

Why choose Siraya Tecgh PEBA 85A
Lightweight Construction (~12% lighter vs TPU)
A low density of ~1.0 g/cm³ helps you reduce part weight without losing durability.
Ideal for:
- Sporting goods
- Drones & UAV
- Mobile robotics
- Wearables

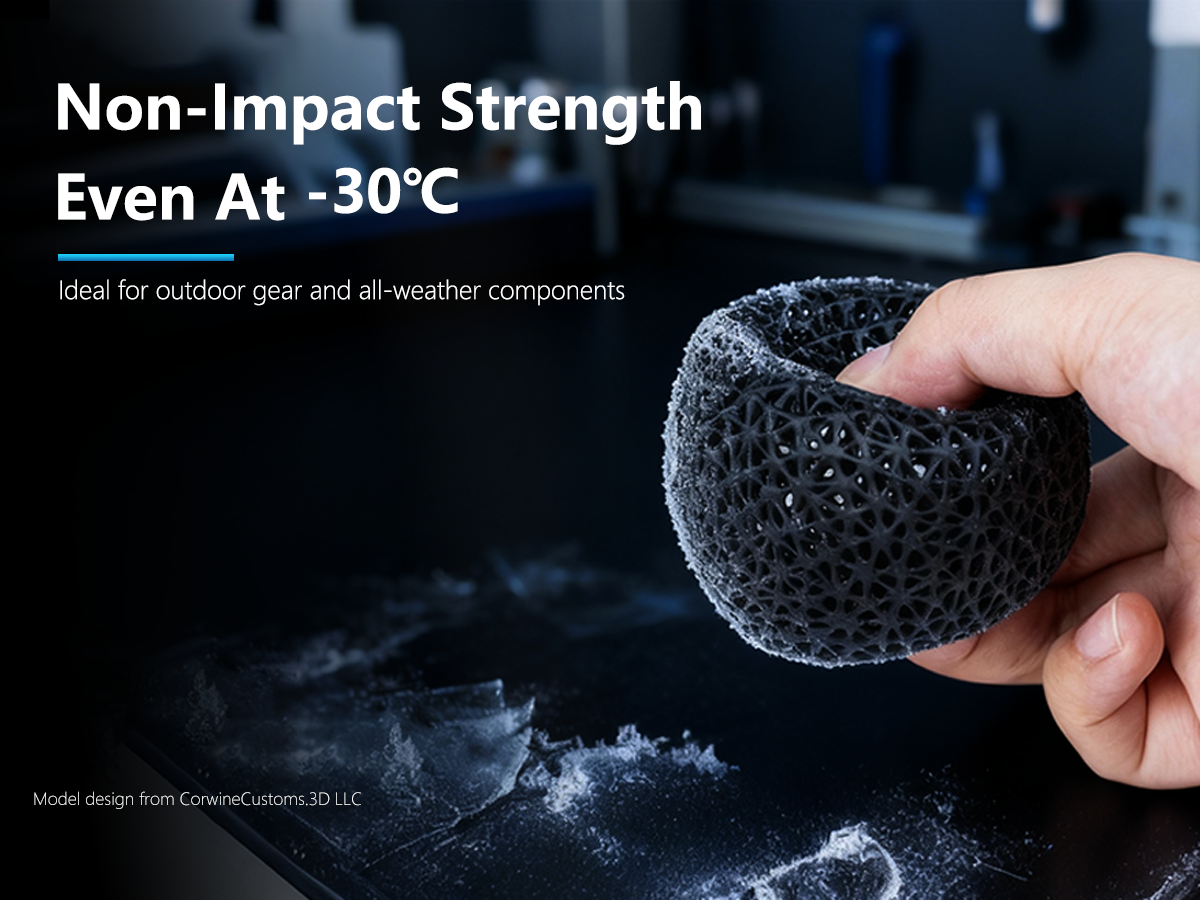

Outstanding Low-Temperature Performance
Stay flexible and strong at -30°C. No brittleness. No cracking.
Perfect for:
- Winter gear
- Outdoor equipment
- All-weather components
Exceptional 62% Energy Return
PEBA 85A delivers true elasticity and instant rebound, far beyond standard TPU.
Perfect for:
- High-performance midsoles
- Orthotics & insoles
- Protective/cushioning components
Soft 85A Flexibility with Long-Term Resilience

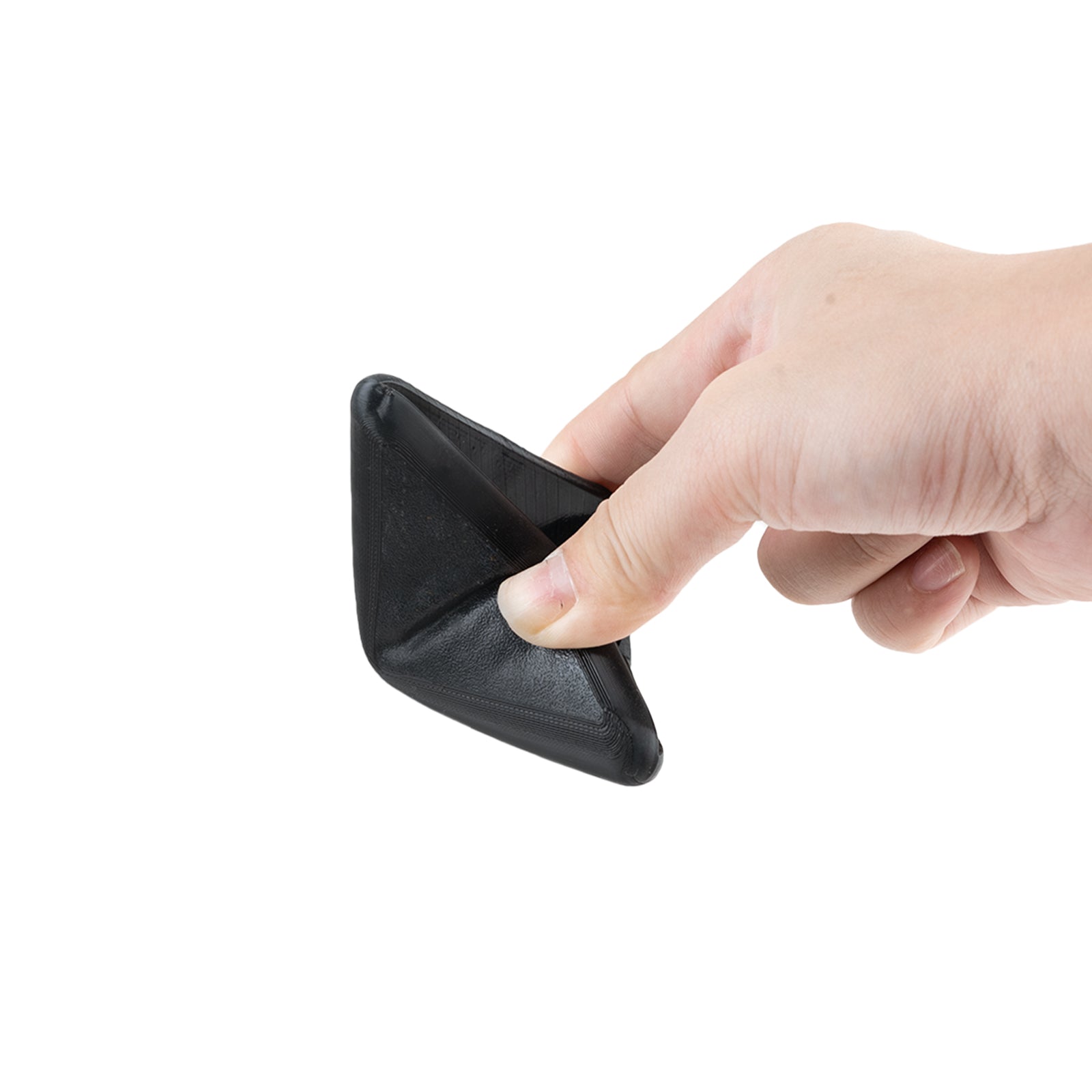

- Bend, flex, compress — without cracking or fatigue

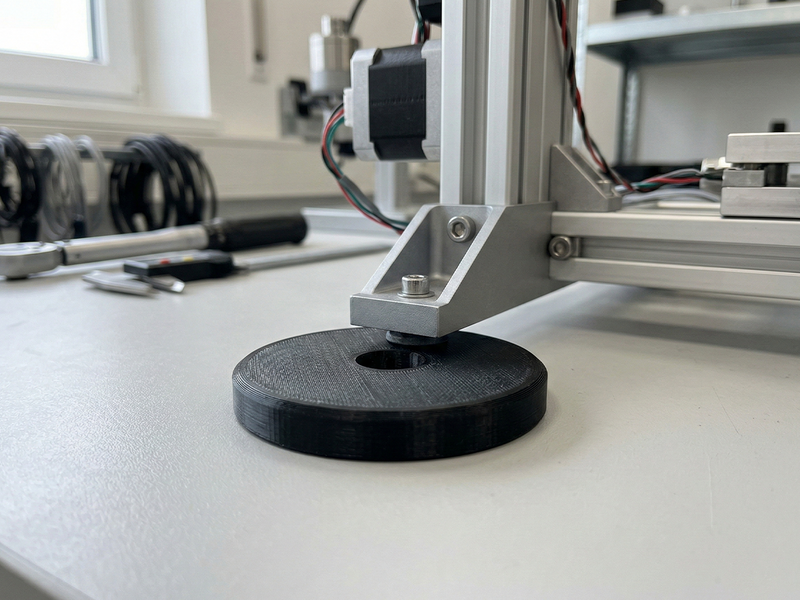

- Superior shock absorption
- Excellent creep resistance
- Maintains structure after repeated deformation

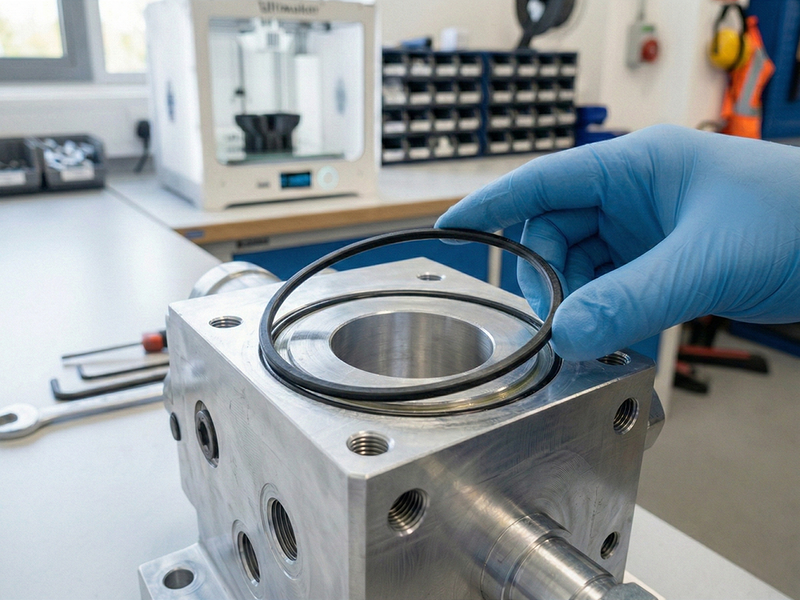

Chemical & Environmental Resistance
Thanks to its nylon-based backbone (PA12), PEBA 85A resists:
- Oils
- Greases
- Fuels
- Industrial solvents
Ensures long-lasting durability in harsh conditions.

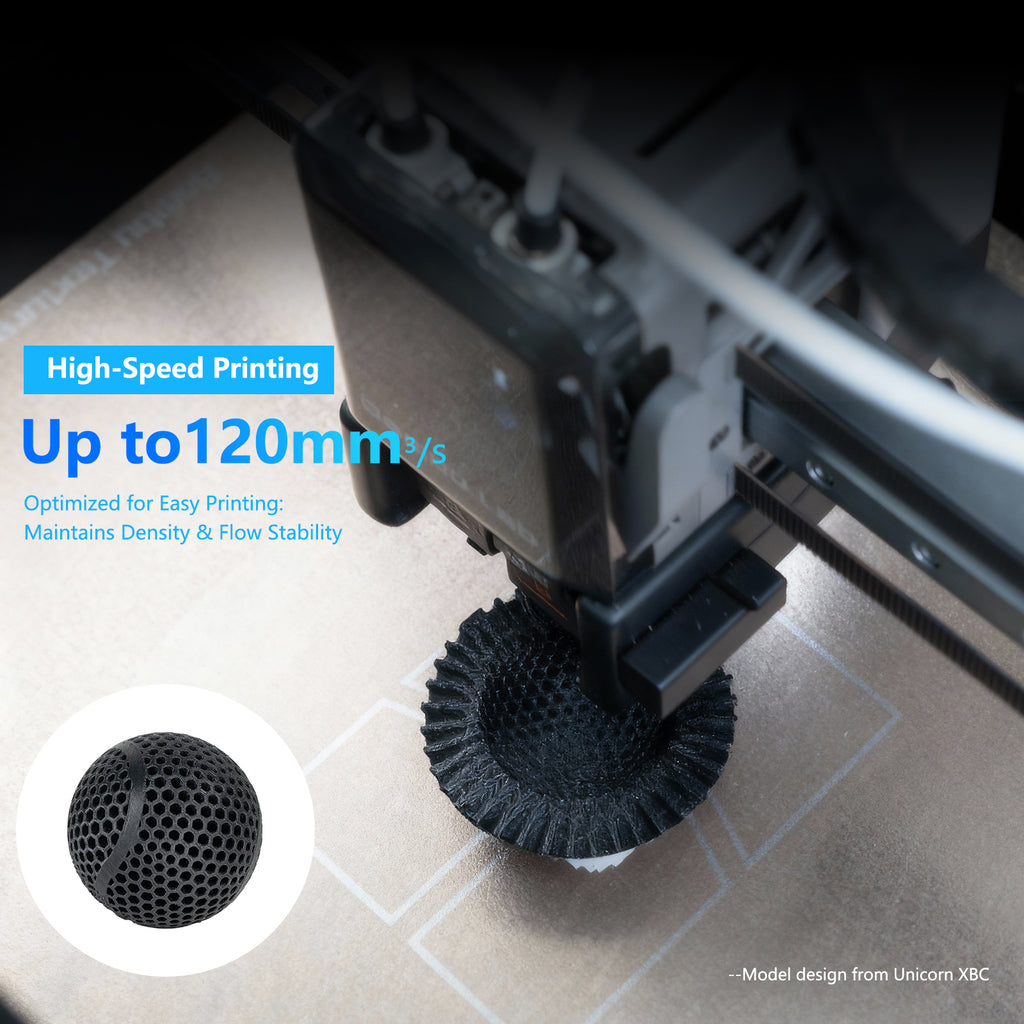

Printing Recommendation
- Nozzle Temperature: 230–260°C
- Bed Temperature: 60–80°C
- Print Speed: 40–80 mm/s
- Cooling: On for better surface quality
- Nozzle: 0.4–0.6 mm (0.6 mm recommended for flexible parts)
- Drying: 60°C for 4–6 hours recommended
User manual
TDS
RoHS
MSDS
Profiles
For others, please start with the settings provided in user manual

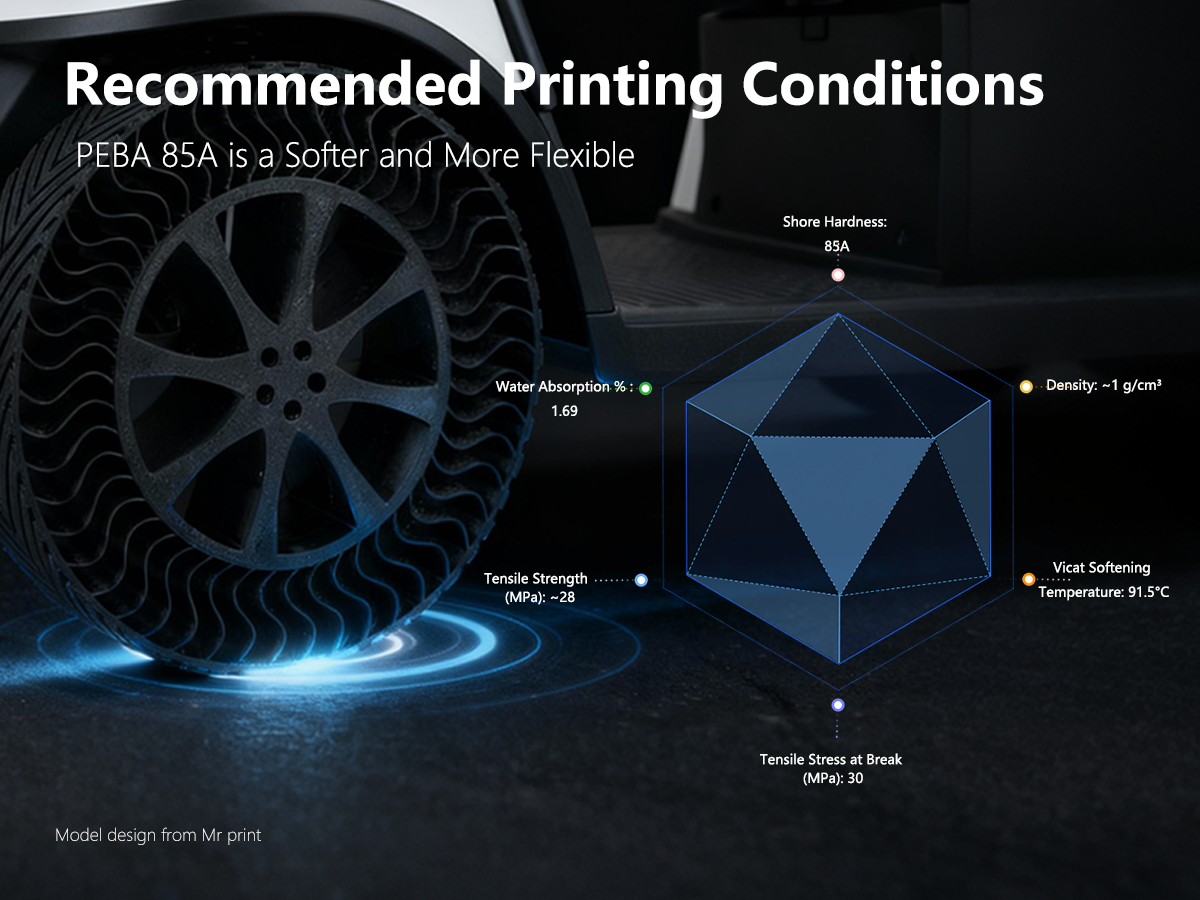

Product Specifications
| Shore Hardness | 85A |
| Energy Return | 62% Bayshore |
| Density | ~1.0 g/cm³ |
| Low Temp Performance | Non-break @ -30°C |
| Chemical Resistance | Oils, greases, solvents |
| Material Type | PEBA (Polyether Block Amide) |

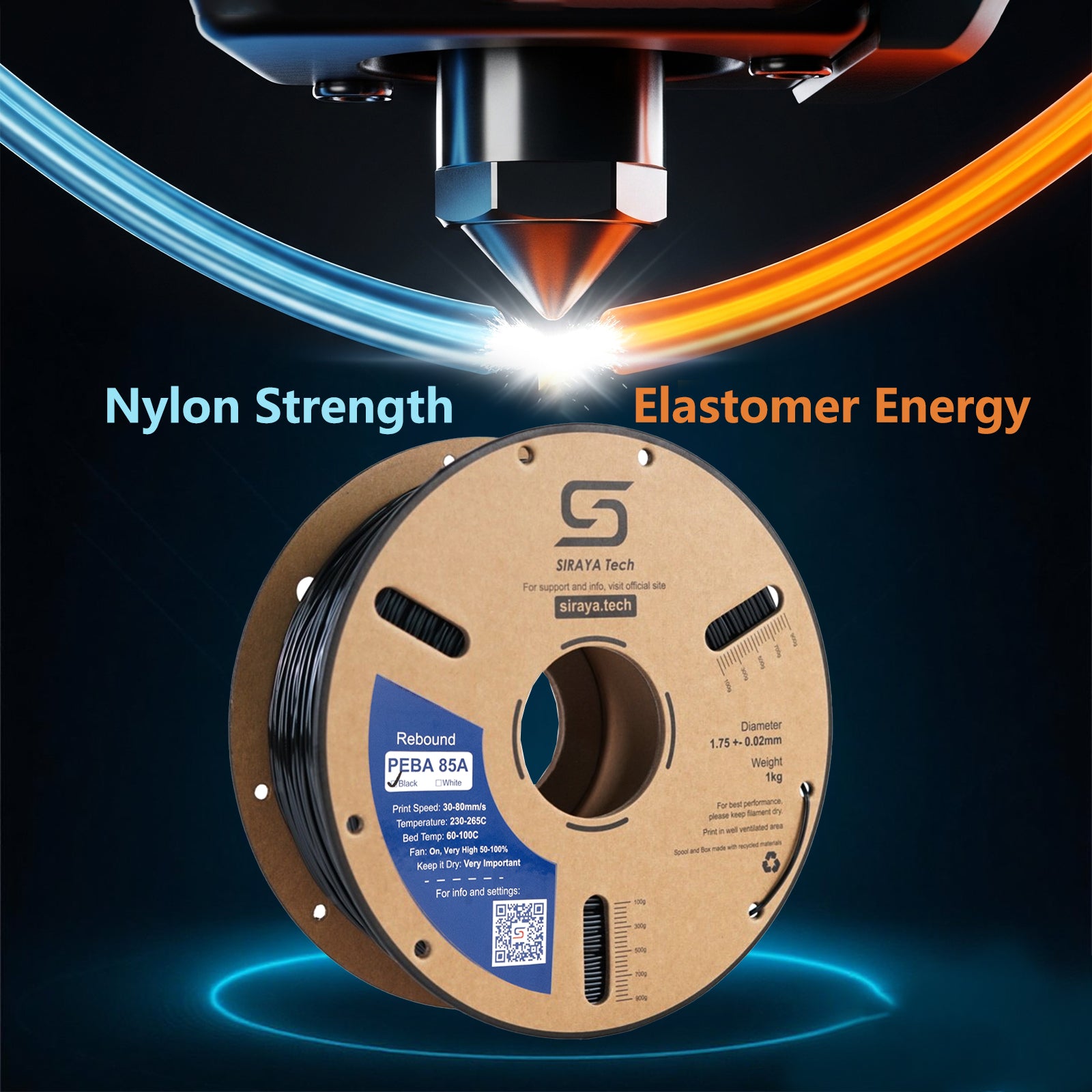

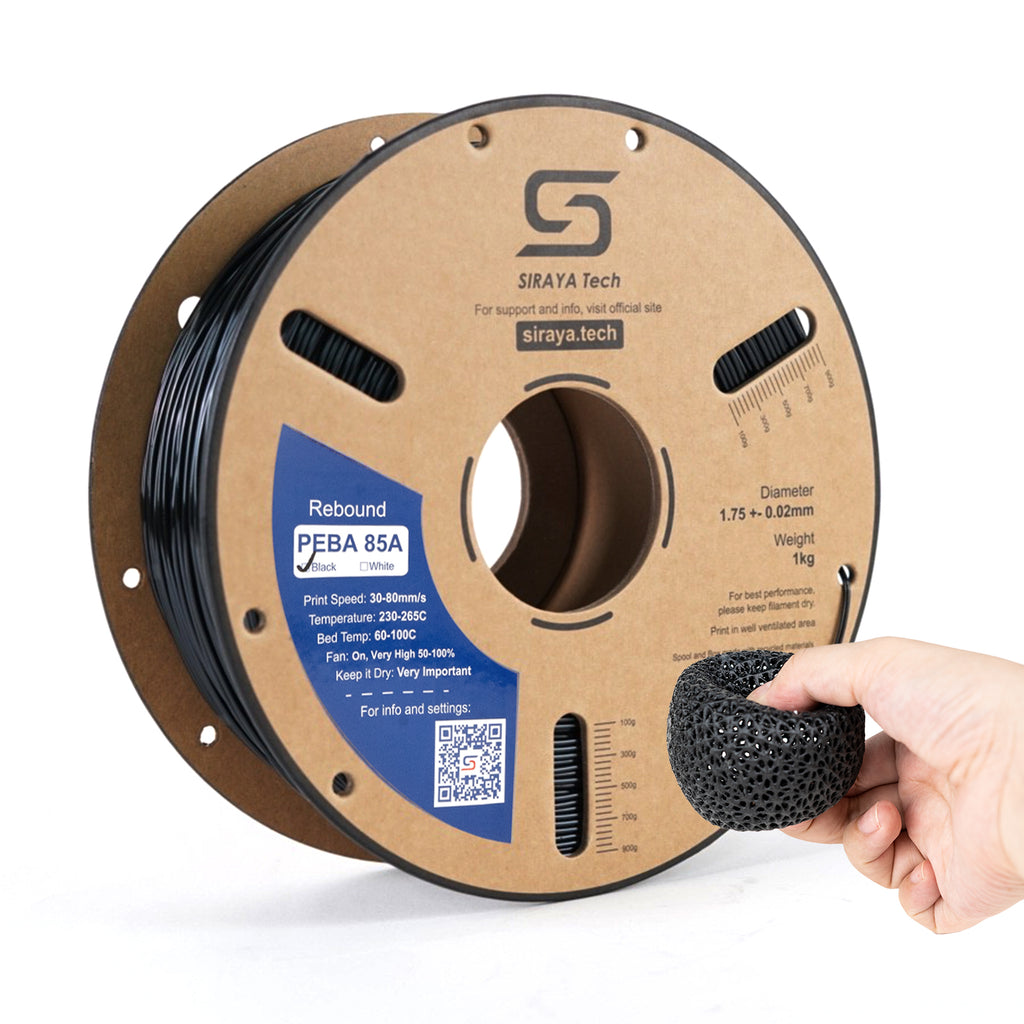

| Format | 1.75mm Filament, 0.8kg |
FAQ
Yes. It offers more rebound, better low-temp performance, and greater softness.
Yes — that's one of the best use cases for PEBA 85A.
Absolutely. It’s lightweight and impact-resistant.
